Combi-Seal Cap

Safety and comfort for pharmaceutical solutions

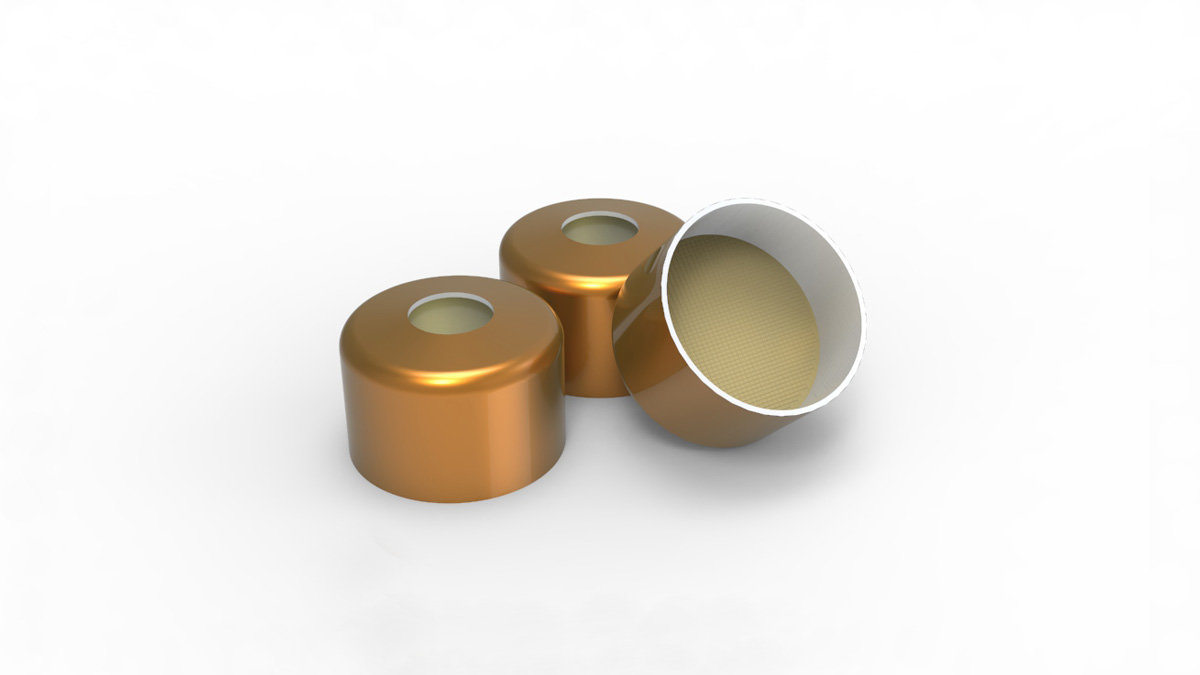

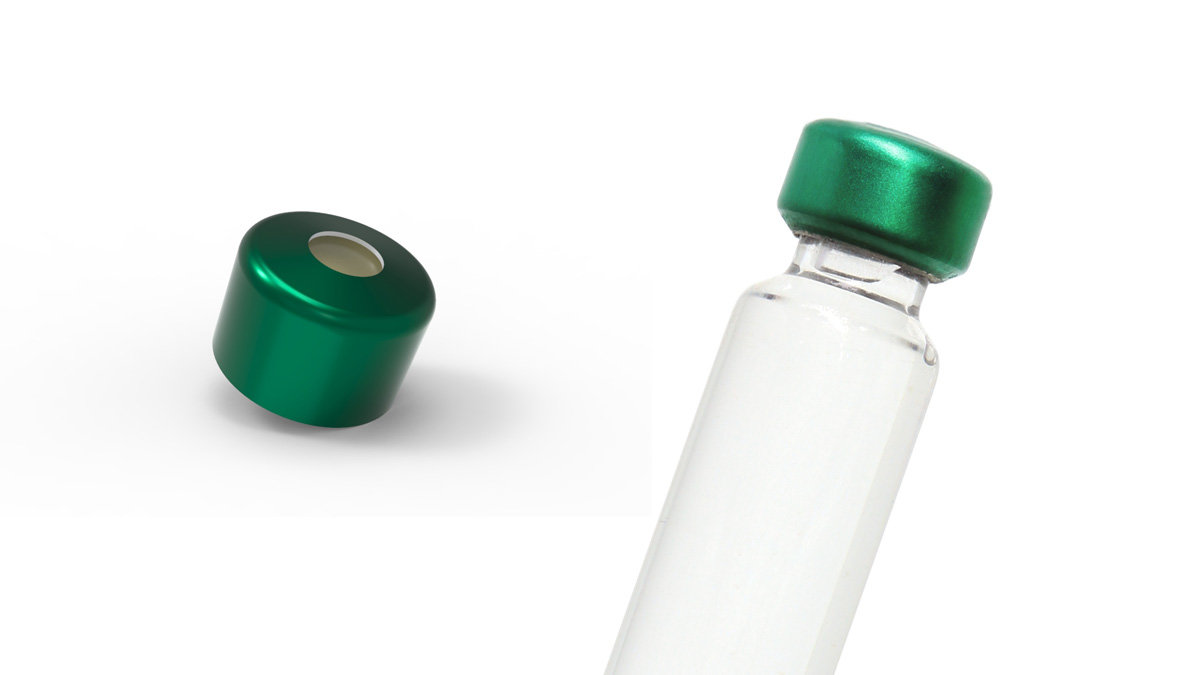

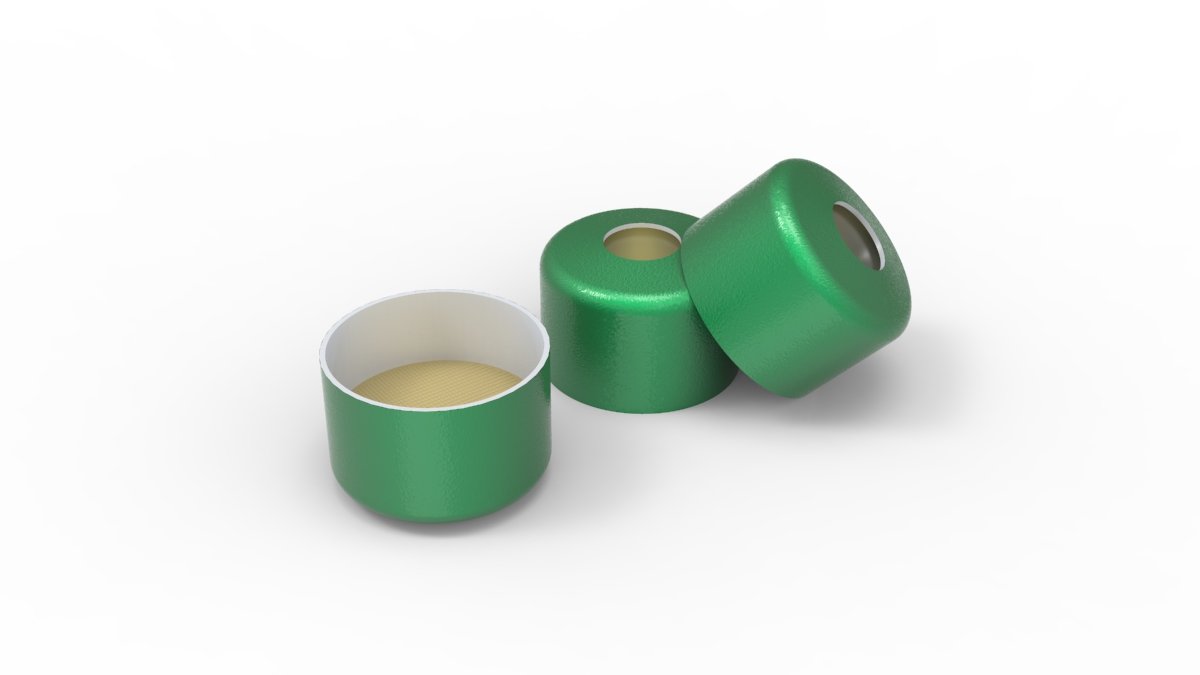

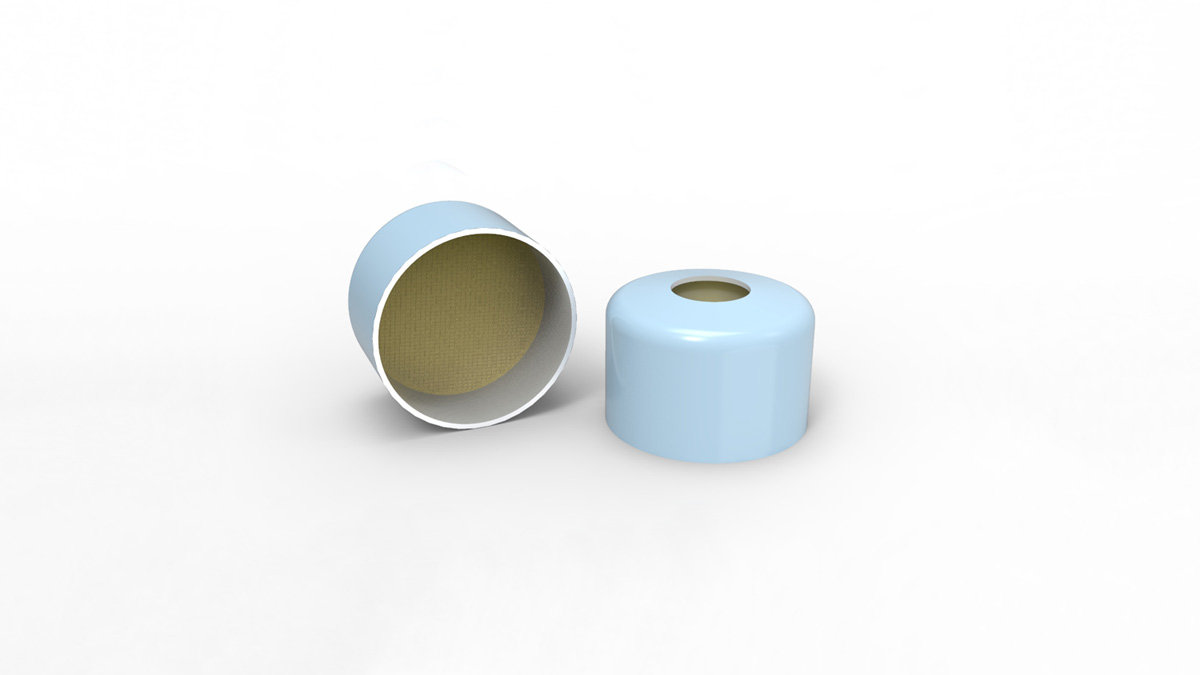

The Combi-Seal Cap is a thin-walled aluminium cap with a sealing element for closure systems used in the medical technology sector. As a primary packaging, the closure component ensures the system integrity of the cartridge and thus ensures easy and reliable application.

Our experience in the development of integrated complete solutions combined with state-of-the-art technical equipment guarantee our customers sophisticated products with maximum safety.

Added value advantages:

  • Ensure the integrity of the container
  • Secure sealing component against mechanical damage and contamination
  • Rubber components are free of natural rubber,  2-MBT and nitrosamines
  • Hardness of the rubber 50 shore A
  • Meets the requirements of USP<381> “elastomeric closures for injection“, type I and Agar diffusion test (USP<87>)
  • Compliance with the highest quality standards through fully automatic assembly and 100 % camera control

Technical Data

Monolayer Liner

Nominal size 7,5
Closure height 4,9   (h1 ± 0,15)
Seal disc thickness 1,3 - 1,5   (h2 ± 0,15)
Inner-Caps diameter 7,5   (d1 + 0,2 / d1 - 0,1)
Hole diameter 3,0   (d2 ± 0,1)

The height of the seal depends on the thickness and hardness of the sealing disc. Dimensions in mm.

Bilayer Liner

Nominal size 7,5
Closure height 5,4   (h1 + 0,1 / h1 - 0,2)
Seal disc thickness 1,45 - 1,95   (h2 ± 0,15)
Inner-Caps diameter 7,5   (d1 + 0,2 / d1 - 0,1)
Hole diameter 3,0   (d2 ± 0,1)

The height of the seal depends on the thickness and hardness of the sealing disc. Dimensions in mm.

Measured Combi-Seal Cap image

Monolayer Liner

  • Bromobutyl rubber
  • According to ISO 11040-3
  • For single piercing applications, e. g. in the dental anaesthesia



Bilayer Liner

  • Bromobutyl / polyisoprene rubber
  • According to ISO 11040-3
  • For multiple piercing applications, e. g. for insulin pen systems



Pharma products

We offer our pharmaceutical industry customers a fully integrated spectrum of solutions with maximum safety for a demanding production.
